Outboard Shaft Length Chart: A Comprehensive Guide

Mercury Marine Propeller Guide logoslasopa from logoslasopa701.weebly.com

If you're a boating enthusiast or a professional boat mechanic, you know that choosing the right outboard motor for your boat is crucial. One of the most important factors to consider when selecting an outboard motor is the shaft length. The shaft length is the distance between the mounting bracket and the cavitation plate of the motor, and it determines how deep the propeller is submerged in the water. In this article, we will provide you with a comprehensive guide on the outboard shaft length chart to help you make an informed decision.

Why Shaft Length Matters

The shaft length is critical because it affects the performance and safety of your boat. If the shaft length is too short, the propeller will not be fully submerged in the water, leading to poor performance, cavitation, and damage to the motor. On the other hand, if the shaft length is too long, the propeller will be too deep in the water, causing drag and reducing the boat's speed and fuel efficiency.

Determining the Right Shaft Length

To determine the right shaft length for your boat, you need to measure the distance between the transom mount and the waterline. This distance will give you an idea of how deep the motor needs to be submerged in the water. You also need to consider the type of boat and its intended use. A larger and heavier boat will require a longer shaft length than a smaller and lighter boat. Additionally, boats used for fishing and cruising may require different shaft lengths.

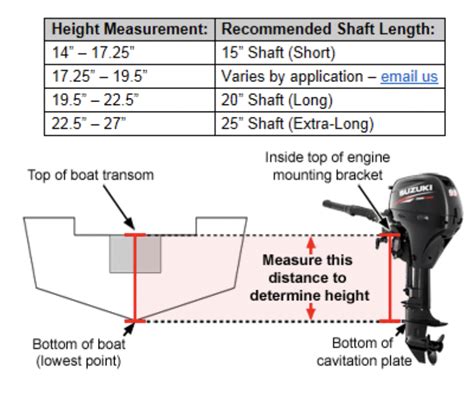

Outboard Shaft Length Chart

The outboard shaft length chart is a table that provides the recommended shaft length for different types and sizes of boats. The chart takes into account the boat's transom height, the distance between the transom and the waterline, and the type of boat. Here is a general guide for selecting the right shaft length based on the boat's length: - Boats up to 14 feet: 15 inches shaft length - Boats 15 to 16 feet: 20 inches shaft length - Boats 17 to 19 feet: 25 inches shaft length - Boats 20 to 23 feet: 30 inches shaft length - Boats 24 to 27 feet: 35 inches shaft length - Boats 28 feet and longer: 40 inches shaft length or longer It's important to note that this is just a general guide, and you should always consult the manufacturer's recommendations or a professional mechanic before making a final decision.

Other Factors to Consider

In addition to the boat's length and transom height, there are other factors to consider when selecting the right shaft length. These include the type of motor, the propeller size, the boat's load capacity, and the intended use. For example, if you plan to use your boat for water sports, you may need a shorter shaft length to provide better acceleration and maneuverability.

Conclusion

Choosing the right outboard motor and shaft length is crucial for the performance and safety of your boat. By using the outboard shaft length chart and considering other factors, you can make an informed decision and enjoy your boating experience to the fullest. Remember to always consult the manufacturer's recommendations or a professional mechanic before making a final decision. Happy boating!
